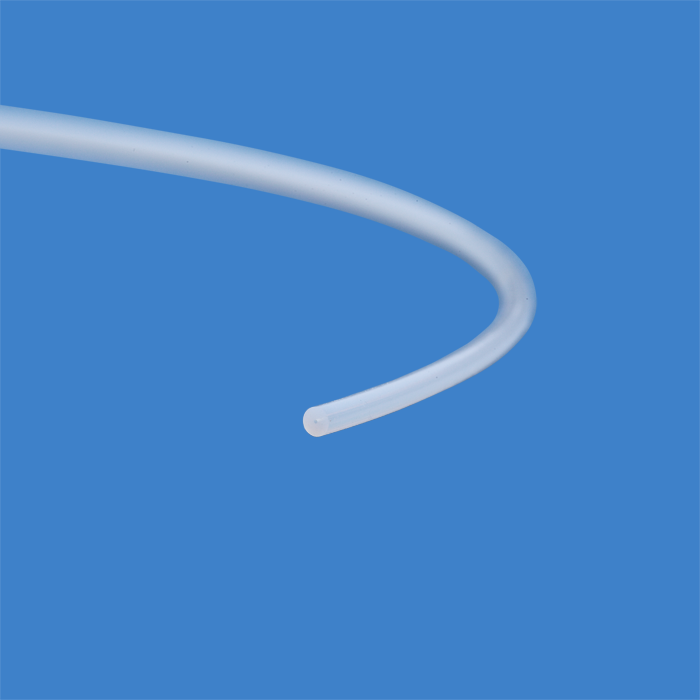

Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-07-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for use in HPLC, UHPLC, and general laboratory applications, providing excellent chemical resistance, flexibility, and consistent dimensional performance.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination risk and compatibility with sensitive mobile phases and solvents.
Precise Dimensions – Optimized for Low Flow Applications
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Ideal for low flow rate applications and precise fluid control
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths:
Pre‑pump solvent delivery
Post‑detector waste lines
General lab fluid transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Suitable for mobile phase delivery and solvent waste systems
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in HPLC and LC‑MS workflows
Broad Chemical & Temperature Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous buffers
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores that allow slight gas exchange
May impact:
Degassed solvent stability
Oxygen‑sensitive applications
✅ Consider alternative tubing for strictly oxygen‑free workflows
Flexible & Durable Design
Flexible for easy routing and installation
Durable under repeated use
Translucent natural color for visual flow confirmation
✅ Supports efficient lab setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the length that best fits your application needs:
1 meter (this item)
✅ Custom cut lengths are available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste lines
Low‑pressure fluid transfer systems
General laboratory tubing applications
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Consider permeability when working with degassed or oxygen‑sensitive solvents
Ensure proper fittings for secure connection
